Vertical Vessels
We calculate FRP tanks according to standard. We can determine the size of FRP tank according to the International standards of fiberglass reinforced plastic(FRP) / GRP. The most common ones are:
EN-13121-3,
BS 4994 – 1997,
ASTM D-3299,
ASTM D-4097,
DIBt Z-40,
AD 2000 Merkblatt-N1,
AFNOR NF T57-900,
ASME Sez.X
ASME RTP-1.
JC/T587-2007
EN-13121-3,
BS 4994 – 1997,
ASTM D-3299,
ASTM D-4097,
DIBt Z-40,
AD 2000 Merkblatt-N1,
AFNOR NF T57-900,
ASME Sez.X
ASME RTP-1.
JC/T587-2007
Classification by application
Acid-proof storage tank (salt tank, sulfuric acid tank, phosphoric acid tank, nitric acid tank, organic acid tank, fluosilicic acid tank, hydrofluoric acid tank, etc.)
--Alkali resistant storage tank
--Storage tanks of brine and sewage
--FRP/ POLY vinyl chloride (FRP/PVC), FRP/PP composite tank
Classification by shape

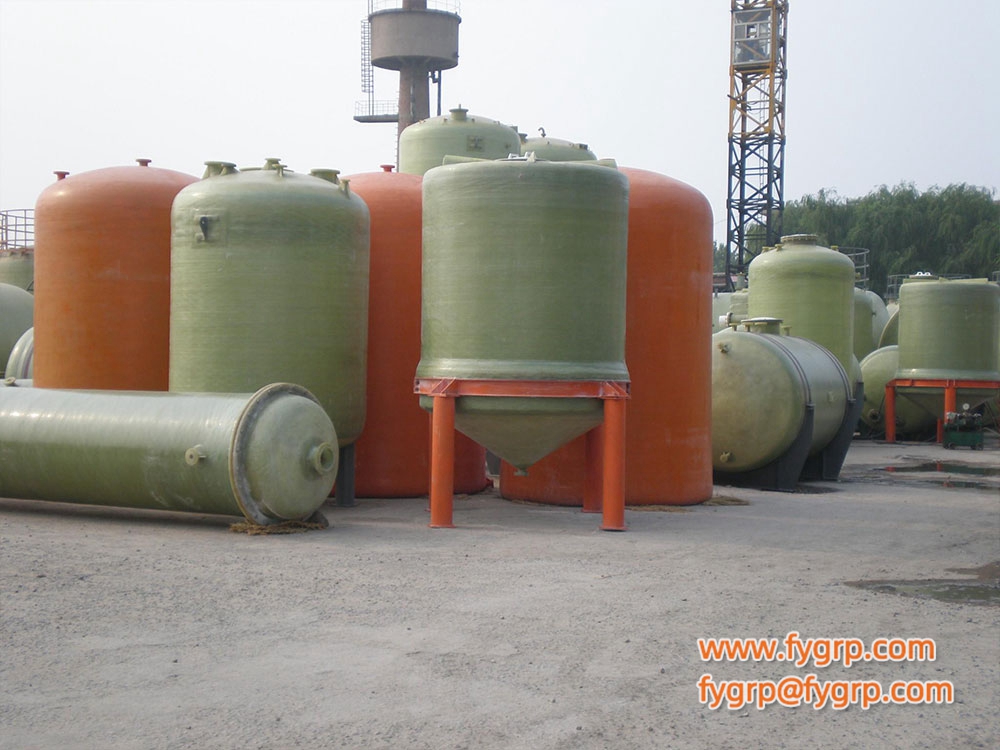

 | Vertical flat bottom tank |
 | Vertical tank with legs |
 | Vertical tank with legs |
 | Vertical tank with skirt |
Standard volume from 1 m³ to 150 m³.
Nominal diameter from 1000 mm to 4500 mm.
Geometries

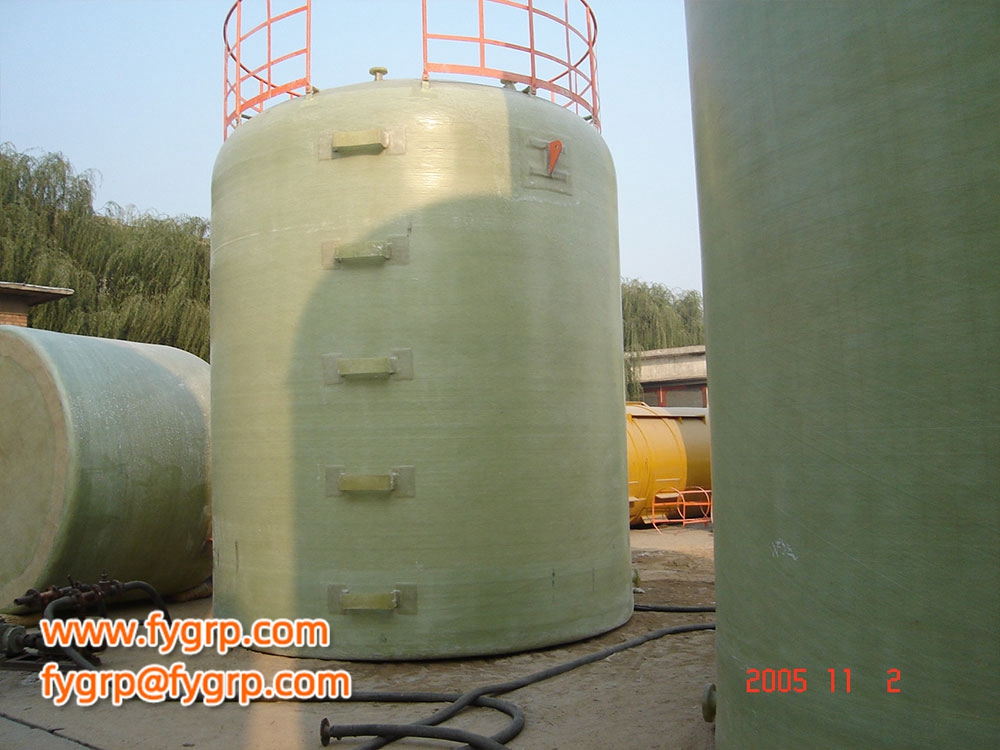

FRP tanks have flat bottom and dished roof.

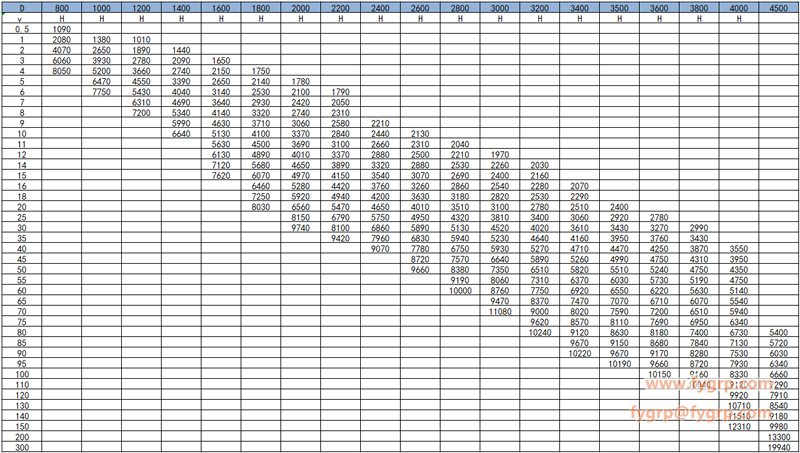

Standard volume from 1 m³ to 200 m³ . Refer to attached data sheets.
The volume of FRP tanks can be of 250 m³ or 300 m³ according to requirement.
Nominal diameter from 1000 mm to 4500 mm.
According to requirement, FYGRP can manufacture tanks that diameter is less than 1000mm such as DN400mm, DN500mm, DN600mm, DN700mm, DN800mm.
The max. diameter is DN4500 mm.
FRP - FRP Tanks - Industrial FRP Tanks – Customized FRP tanks - Commercial FRP Tanks - Fiberglass Reinforcement.
FYGRP is a leading manufacturer that fabricate Fiberglass Reinforced Plastic (FRP) Tank in China.
Composite storage tanks, apply to storing industrial chemical and corrosive fluids.
FYGRP is a fiberglass manufacturer, high quality fiberglass corrosion resistant FRP tanks.
Advantages:
1.Excellent corrosion resistance
2.High mechanical strength and good pressure resistance
3.Very Light weight
4.Good insulating qualities
5.Reduce maintenance & repairs time
6.Easy installation, low maintenance cost
7.Anti-aging and long service life
Application

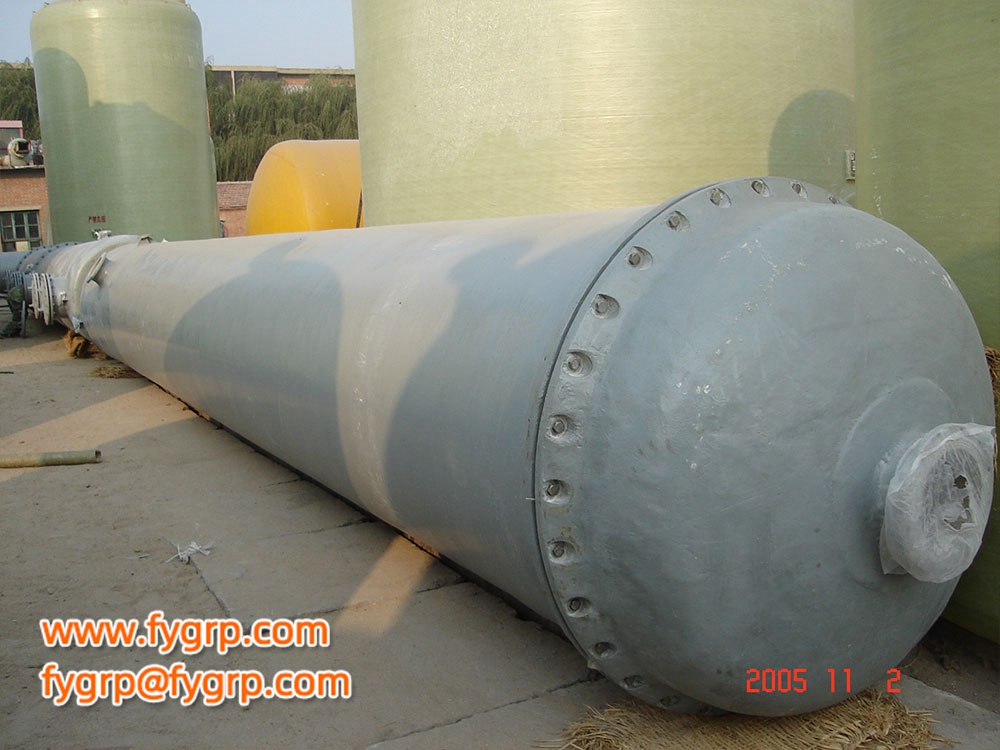

Horizontal FRP tank has the outstanding advantage of corrosion resistance. It is gradually taking the place of metal tanks in many fields. Horizontal FRP tank is used both above and underground. It is wildly used many industries such as metallurgic industry, chemical industry, medical treatment, light industry, construction industry, textile, food and electroplating waste water treatment, etc.
Specifications
Please contact tc@fygrp.com for details
